Vacuum Filling machine ZG6000
Discover the ZG6000 Vacuum Filling Machine, a state-of-the-art equipment designed for the meat processing industry. Featuring a servo motor-driven system, automatic vacuum quantitative filling, and high-quality stainless steel construction, this machine offers precision filling with a quantitative accuracy of up to 2.5 grams. Suitable for a variety of casings and bottles, the ZG6000 boasts a filling capacity of 3000kg/h and adjustable filling and tying pipes. Our company produces ZG6000 vacuum filler , meat processing equipment , sausage filling machine Please contact us if necessary Whatsapp +86 13754518532 Email jean@eternalsourcemachinery.com
Inquiry

Product Description

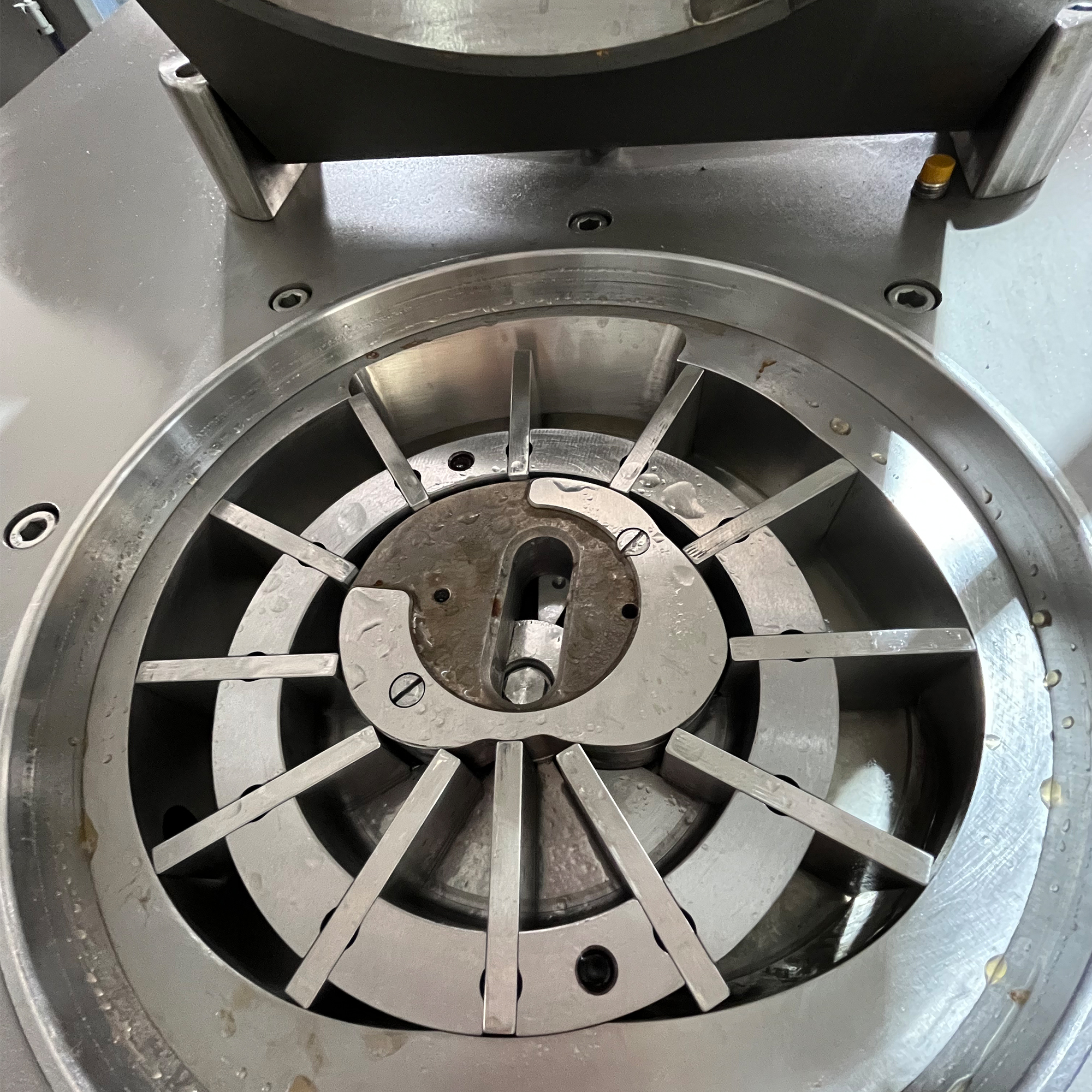

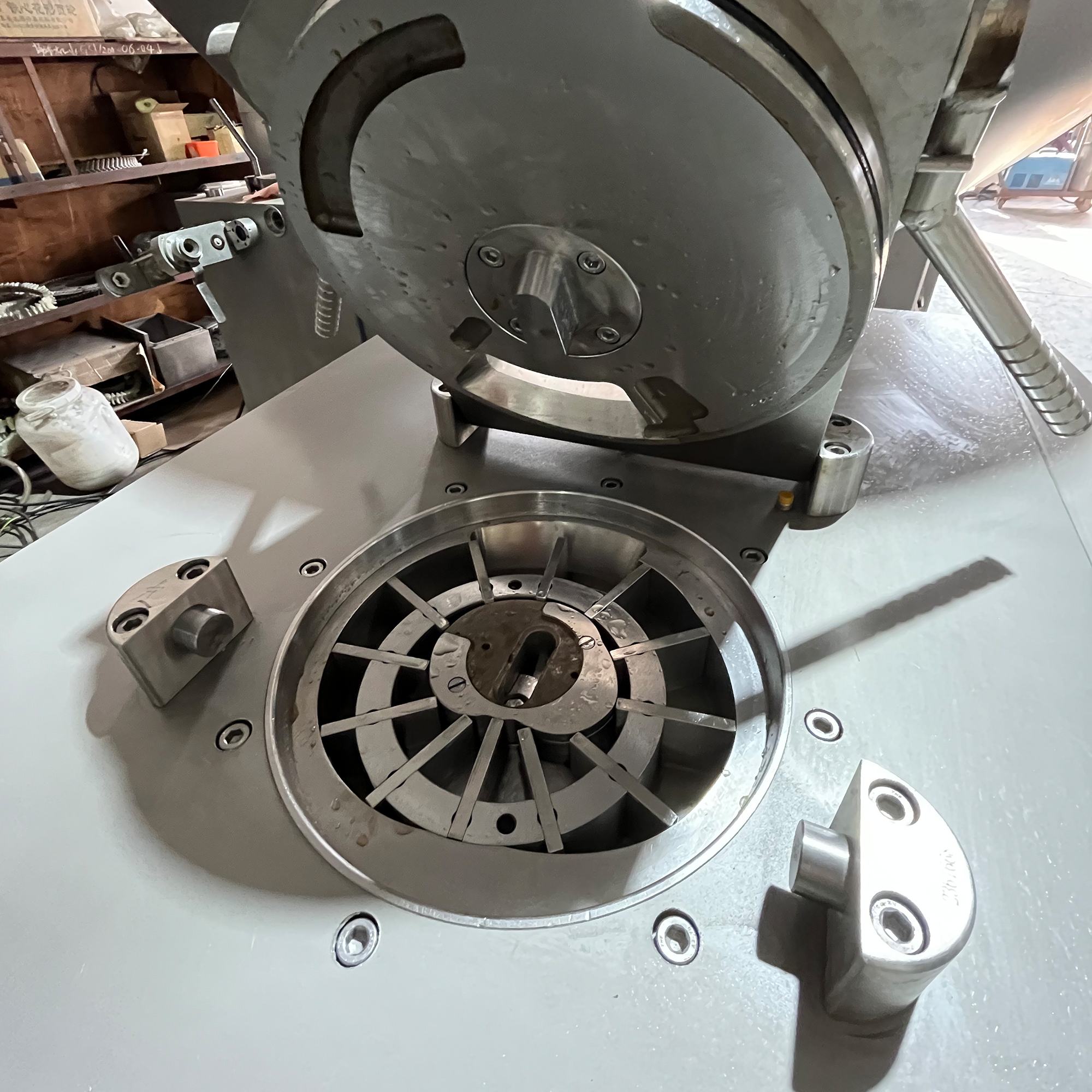

ZG6000 Vacuum Filler  is composed by the vane pump, servo motor-driven, human-machine interface, computer-controlled automatic vacuum quantitative filling machine, with intestinal irrigation system for meat, sausage, ham. The boxed product can also be used for filling all kinds of bottles. Automatic compensation device for the machine has a blade, quantitative accuracy up to 2.5 grams, material soft pass, and both the filling speed and the weight can be adjusted.

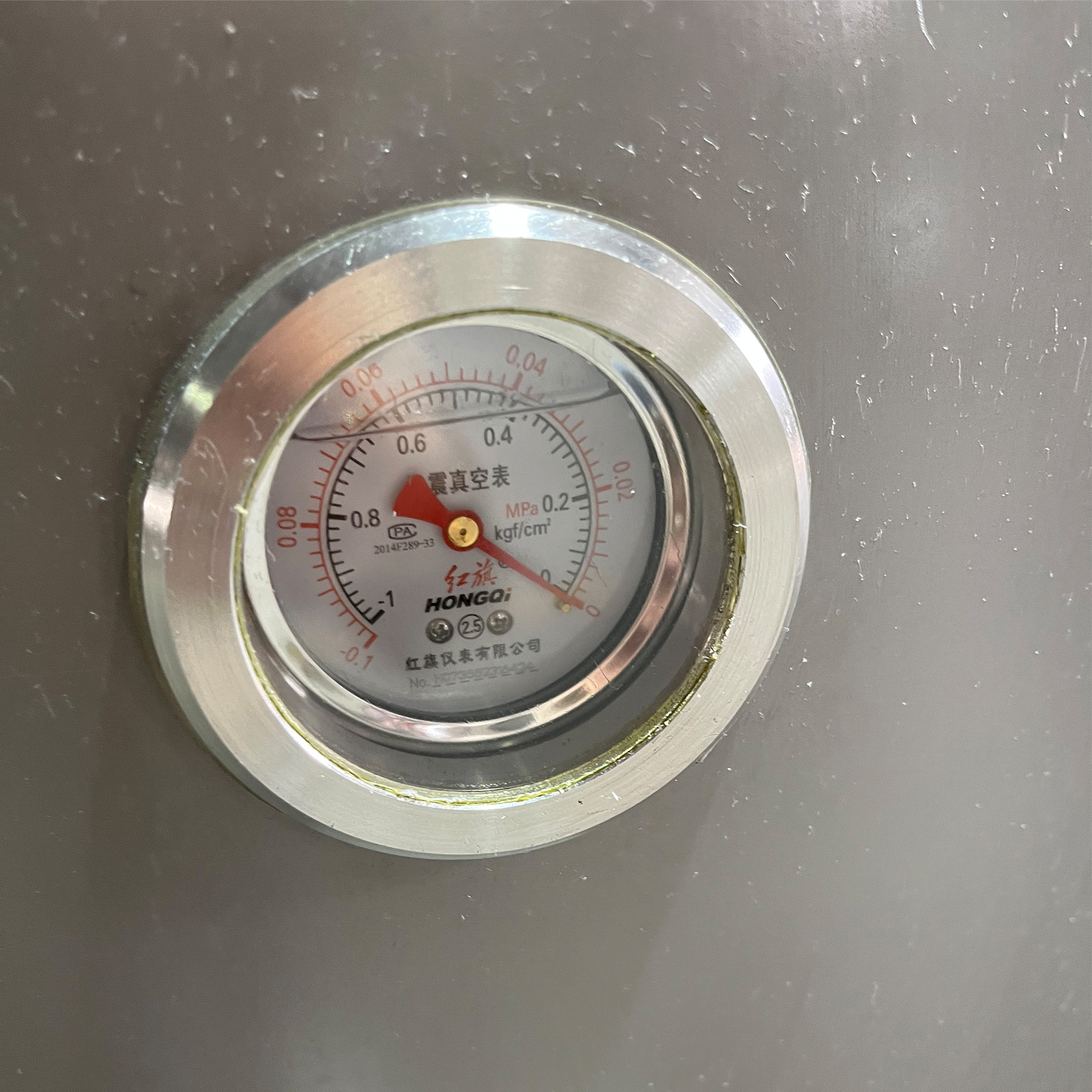

This machine is to fill in the vacuum state, the hopper can be flipped, easy cleaning. Our machine is made of high quality stainless steel , special treatment on the key components, durability, and control part of imported components,  advanced surface treatment , compact structure, easy operation, convenient maintenance, with security guards. It is the ideal equipment for meat processing industry.

Features:

 1. Based on the filling hopper , the ZG6000 Vacuum Filler can increase the speed synchronized with the feeding system ;

2. Together with the propeller into the hopper scraper , the material can be filled into the pump chamber entrance smoothly.



Main technical parameters :

Suits straight-filling, Nylon casing, Plastics casing, PVDC,cellulose casing .

1. Filling Capacity:3000kg/h (maximum)

2. error±2.5kg

3. Tying sphere1-10 sphereadjustable

4. power: 380V 50HZ

5. total power8KW

6. Volume:  250L

7. height of center1000mm(adjustable)

8. filling pipe : φ20 mm φ25φ33mmφ40mm

9. Tying pipe :φ15φ20

10. weight: 850kg         Dimension: 1980×900×1820mm
