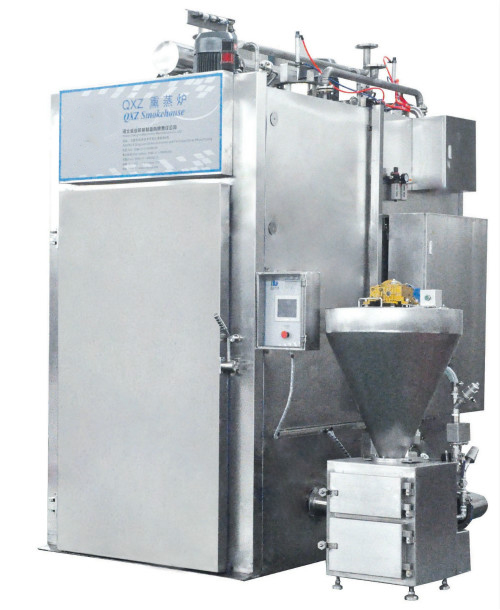

Smokehouse
Discover our high-quality SUS304 stainless steel steam heated smokehouse, perfect for processing sausage, ham, bacon, poultry, and fish products. Featuring computerized automatic control, an external woodchip fired smoke generator, and vertical RUN-FLOW air technology, our smokehouse guarantees consistent results. With a max temperature of 100°C and a capacity of up to 1000kg, it's ideal for your food processing needs.Our company produces Smokehouse , sausage processing , ham processing Please contact us if necessary Whatsapp +86 13754518532 Email jean@eternalsourcemachinery.com
Inquiry

Product Description


Material:

SUS304 Stainless steel

Heating Form: Steam heating

Doors: One door

Trolley:One trolley,totally 250kg.

Specifications

Steam heated smokehouse for processing sausage, ham, bacon, poultry and fish products.

Standard function

Reddening, Drying, Cooking, Smoking and optional backing and cold smoke

Main Tech. Parameter:

1. Max. temperature: 100°C

2. Capacity : 1 trolley (ref 250kg)

2 trolley (ref 1000kg)

3. Dimension (ref. the outline drawing) and trolley size.


Control:



Computerized automatic control, big touch screen. Parameters can be shown in one control interface. 100 recipes could be restored. Drying, smoking and cooking temperature and time can be set for each procedure and will run automatically.

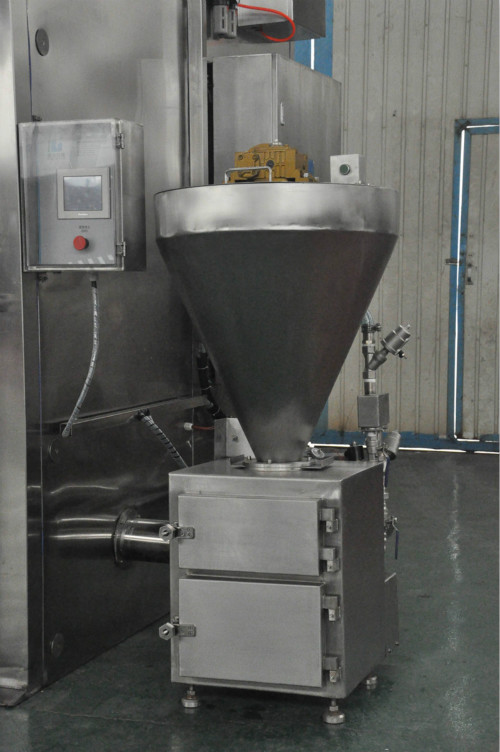

Smoke Generator:

External woodchip fired smoke generator with adjustable smoke amount and density and fire alarm.

Material: SUS304 Stainless steel, wood was put in the hopper, when there is smoking signal from PLC, electric heating the woods to generate smoke smell. The dust will fall into the locker.



Characteristic:

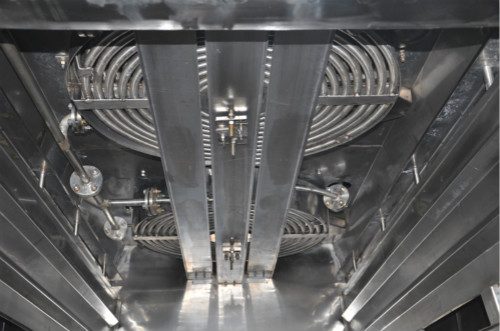

1. Vertical RUN-FLOW air technology to guarantee the consistency

2. Touch-screen and PLC control

3. Automatic clean system

4. Modular unit with full-welding stainless steel construction

5. Ramp design for trolley

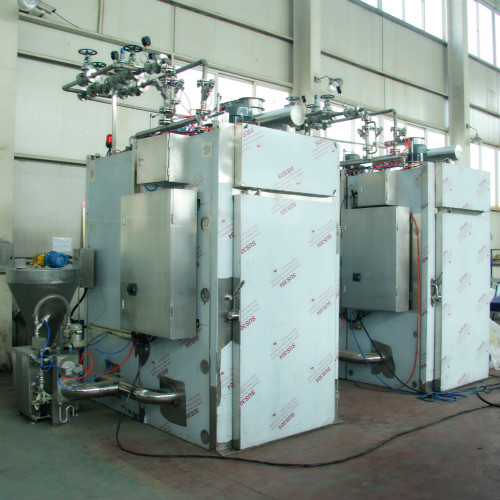

Installment Sample (Pictures was took in Customers Factory)



The machine could be used for kinds of sausages:



Package Details:

Fumigation Wooden Case

Technical Data:









Type

Capacity

(kg)

External Dimension

mm

Power

kw

Max High Pressure Temperature

()

Max Low Pressure

Temperature

()

Air Consumption

kg/h

Weight

kg

Trolley

set

QXZ

1/1

250

1275*1140*

3278

6

100

100

70

1200

1

QXZ1/2

500

2520*2250*

3278

10

140

2400

2

QXZ2/2

500

2530*2260*

3278

10

140

2500

2
