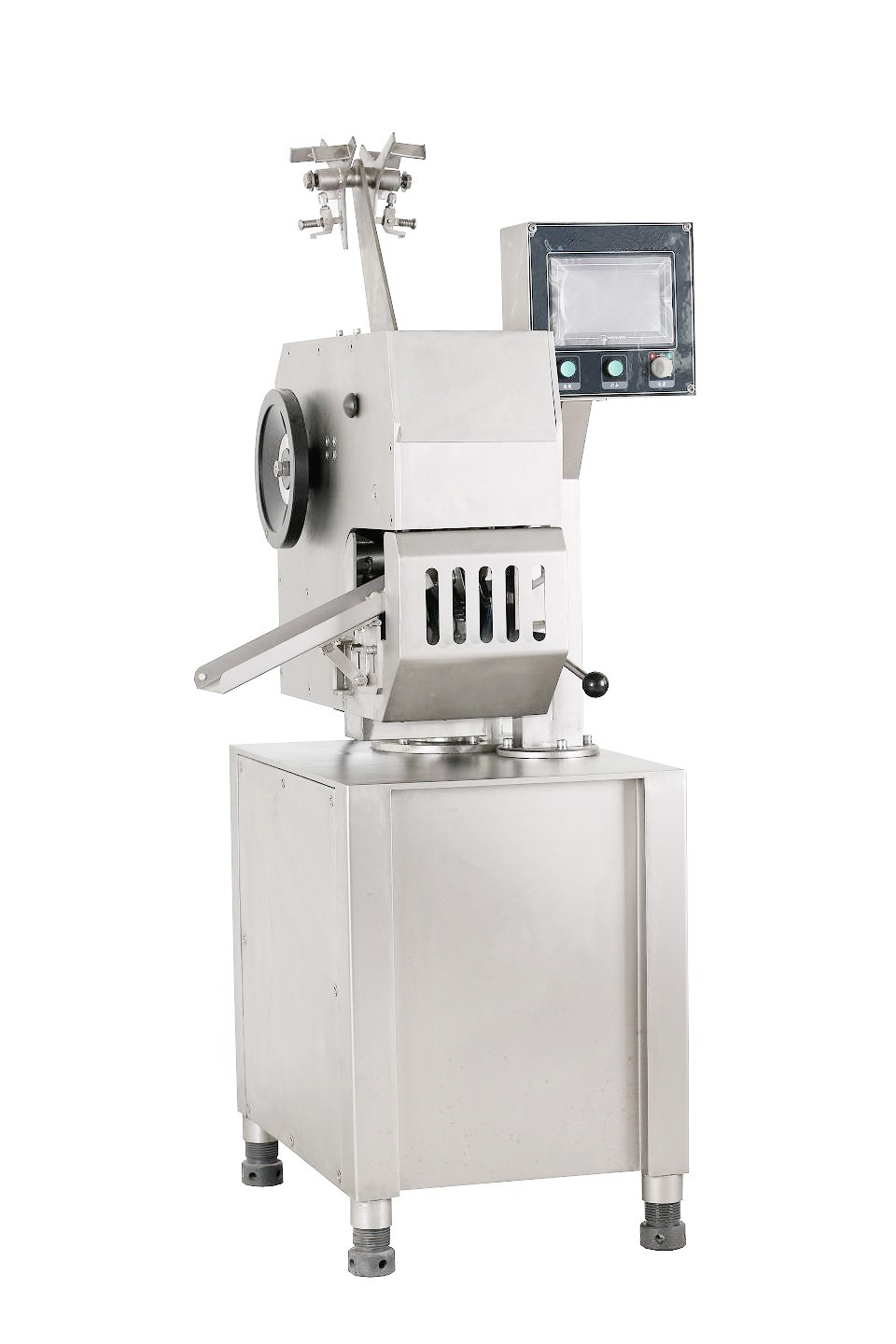

DK120 Clipping Machine
The DK120 Clipping Machine is a PLC-controlled clipping solution driven by a servo motor for high speed and precision. It features an error operation protection system and is composed of high-quality SUS304 stainless steel with special treating on key parts. Suitable for 12-15mm Great wall clips, the machine can be connected to other filling machines to form an automatic production line, including filling, casing, and cutting. Our company produces Clipping Machine , DK120 Clipping Machine Please contact us if necessary Whatsapp +86 13754518532 Email jean@eternalsourcemachinery.com
Inquiry
Contact us

Product Description


The DK120 Clipping Machine is controlled by PLC, can be run under several programs;

Driven by servo motor, which is capable to run under high speed and precision.

Error operation protection system.



DK120 is composed by high quality SUS304 stainless steel. Special treating on key parts.

All electrical parts are water-proof, which ensure the working safety.



The 12-15mm Great wall clips are suitable. The Clipping Machine can be connected to other filling machines to form automatic production line which includes filling, casing and cutting.













Technical Data

 Model

Power

 (kw)

Clip Model

（mm）

Casing

Diameter

（mm）

Speed（T/Min）

Air Pressure

（Mpa）

Weight

（kg）

Dimension

（mm）

DK120



3.5

12-15

35-120

120

0.5~0.6

460

950*830*1800
