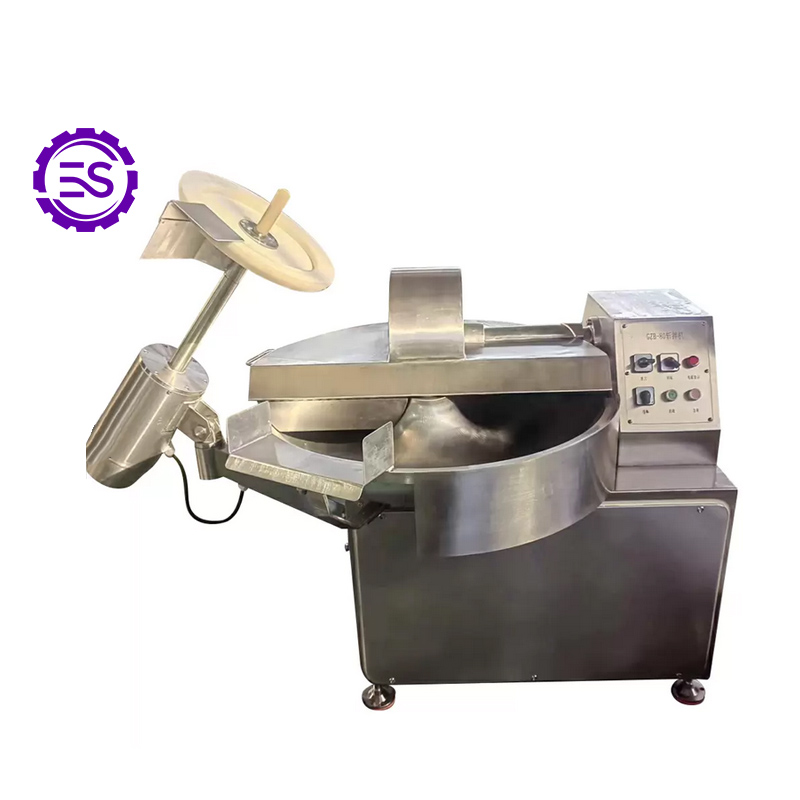

Bowl Cutter GZB80/GZB125
The Bowl Cutter GZB80/GZB125 is designed for processing both fresh and frozen meat, as well as vegetables like ginger, with excellent cut and even granulation. Featuring a minimum distance of 1mm between the cutter bowl and knives, easy knife-change, and a control panel with water-proof keys, this machine ensures high efficiency and hygiene. With a capacity of 80L or 125L, the cast stainless steel bowl is polished for hygienic standards and easy cleaning. The imported SKF bearings and special sealing types guarantee endurance, while the powder feed-in hole allows for ingredients to be added without opening the cover. Suitable for meat processing plants, this machine offers low noise levels and adjustable feet. Technical specifications and dimensions are provided for both GZB80 and GZB125 models.Our company produces Bowl Cutter GZB80/GZB125 Please contact us if necessary Whatsapp +86 13754518532 Email jean@eternalsourcemachinery.com
Inquiry

Product Description


Application:

Processing of both fresh and frozen meat.

Processing of large chunks without pre-grinding.

Excellent cut and even granulation.

Processing of vegetables like ginger.







Knife:

Minimum distance between cutter bowl and knives. 1mm

Easy and quick knife-change.

Knife head easy and quick to install.

Knife balance, no vibration and imbalance.

6 knives totally.

Four Speeds: 4500/3000/1500/750rpm

Frequency converter





Sausage Meat Ejector



Quick unloading of bowl.

Speed: 80rpm

Material: Poly













Bowl



Volume:80L, 125L , deep type, large capacity

Polished surfaces for hygienic standards.

Speed: 8/12rpm

3°leaning, water can not stay in the bowl. Easy to clean it thoroughly.

Water-plug at the bowl bottom.



Control Panel

With function keys, located at right side of the machine.

Water-proof keys imported from German, IP degree 54.

With water-proof edge.





Feature:

1. Reasonable knife assemble makes the products in high degree of fineness, small heating. It is one of the most necessary machines in meat processing.

2. Material of the bowl is cast stainless steel, polish treatment. The Bowl is very smooth.

3. Imported SKF bearings , special sealing types which greatly guarantee endurance of bearings.

4. Powder feed-in hole, ingredients could be put into the bowl without open the cover when the machine is working.

5. Low Noise level, 85Db.

6. Machine feet adjustable.



Technical Data





Type



Power

(kw)

Output Rotation Speed (rpm)



Bowl

Volume

(L)

Cutting Speed

(rpm)



Bowl Rotation Speed

(rpm)

Knife Numbers

(piece)

Capacity

(kg)

External

Dimension

(mm)

Weight

(kg)

GZB

125

40

80

125

4500/3000/1500/750

8/12

6

100

1800×1600×1200 mm

1600

GZB80

17.2

80

80

60

2100×1400×1550mm

1000
